simplex wire rope clip

Short Description:

  1. Product name:simplex wire rope clip
  2. Material:ZINC, Stainless steel, No.1 stainless steel AISI304-316 No.2 C15
  3. Type:wire rope clip
  4. Place of Origin:China
  5. Brand Name:HengOu
  6. Model Number:YH0208
  7. Size:2-10mm
  8. Special specifications can also be produced according to drawing and sample.
  9.

down load to pdf


Share

Detail

Tags

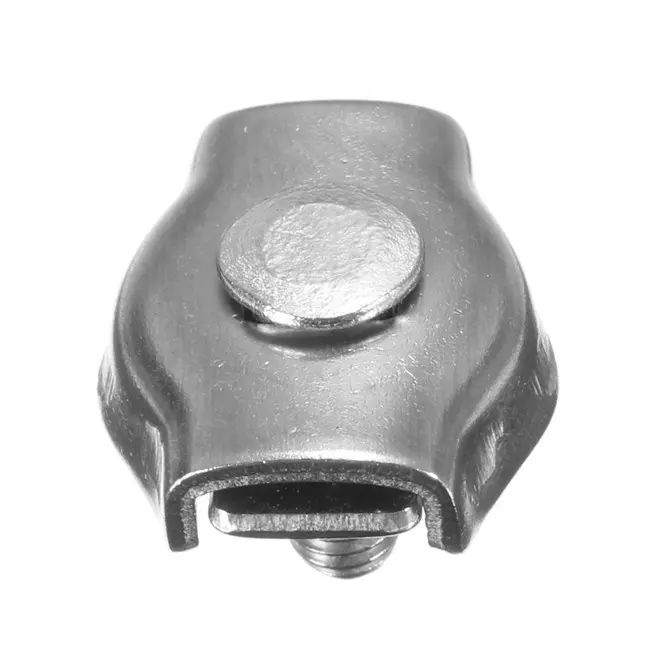

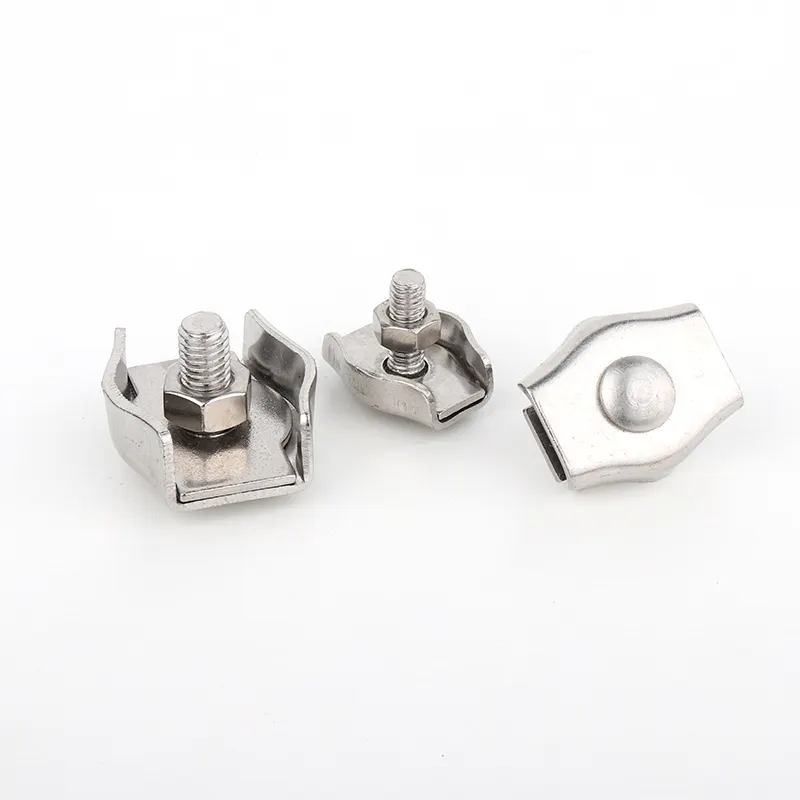

Simplex Wire Rope Clip
The simplex wire clip is a commonly used wire rope accessory for fastening the matching wire rope.
Simplex wire rope clips are made from grade 304 stainless steel and grade 316 stainless steel, ss316 is better than ss304 in corrosion resistance and rust prevention, if their application areas are very bad like marine and biogas..., we recommend you choose grade 316 stainless steel, If not, SS304 is good enough.

Read More About simplex wire rope clip

Simplex wire rope clips are available in size from 2mm to 10mm, when you don't know how to choose the size of wire rope clip, it depends on the diameter of wire rope, their detailed pictures and dimensions are below for your reference. if you have any question about size, material or something else, please feel free to contact us, you could find our contact information on contacts page and the right of this page, we will be very happy to receive your message!

Read More About simplex wire rope clip



Read More About simplex wire rope clip

Read More About simplex wire rope clip

For our normal packing:
Firstly, we put item into poly-bags, usually it is 5pcs/10pcs per poly-bag, according to the size of the item.
Second, we put the item with poly-bags into cartons, usually 500pcs,or 1000pcs into one carton.
And then, cartons packed into wooden pallet if need ocean or air cargo shipping.

Read More About simplex clip

Simplex wire rope clip is one type of frequently used wire rope clamp. This wire rope clip has a simple design, but with strong and high corrosion resistance. It can be perfect for making eye-loop connections or complete loops in wire rope clip cable, we also have duplex wire rope clip for your option.

Made by plate and wire forming not forged, so it’s produced can be very quickly and easily with its price is very cheap.

Read More About simplex clip

Can be used particularly with 7×19 construction, not suitable for any 1×19 construction wire rope cables or 7×7 construction 4mm and above (can be used with 7×7 construction cables up to 4mm diameter).
The metal wire clamp approximate failure load is 50% of the cable’s breaking load
Not suitable for overhead lifting
