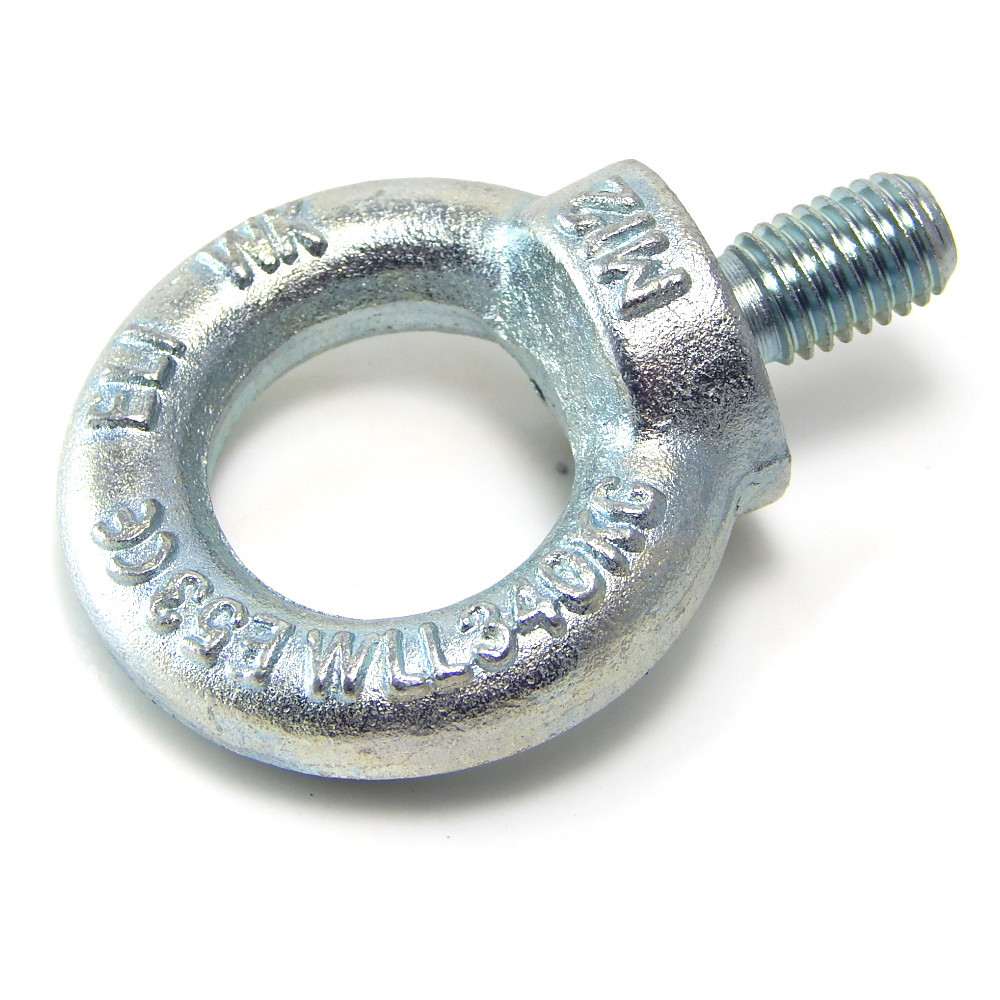

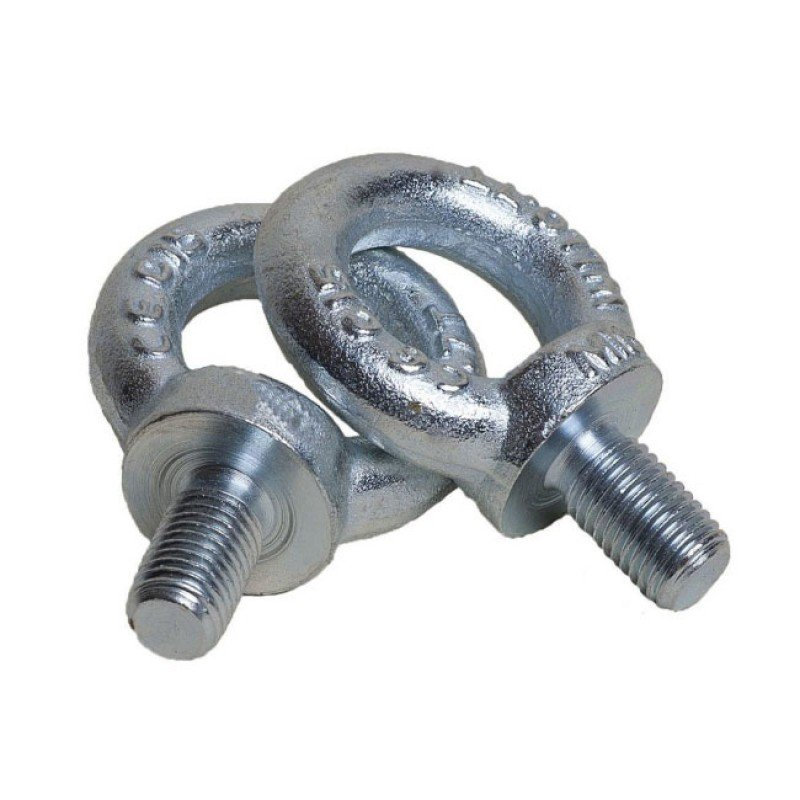

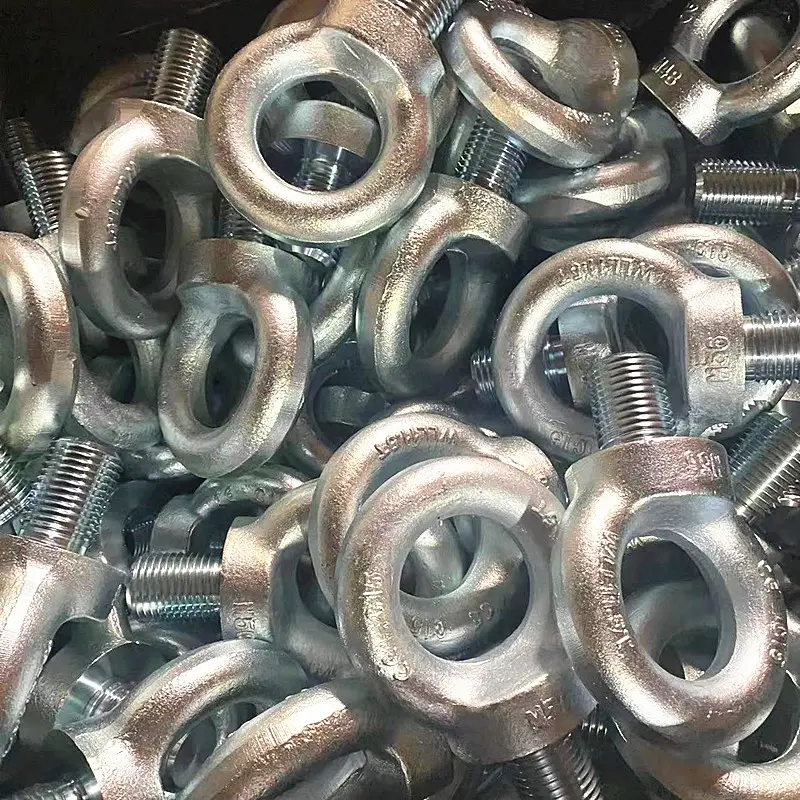

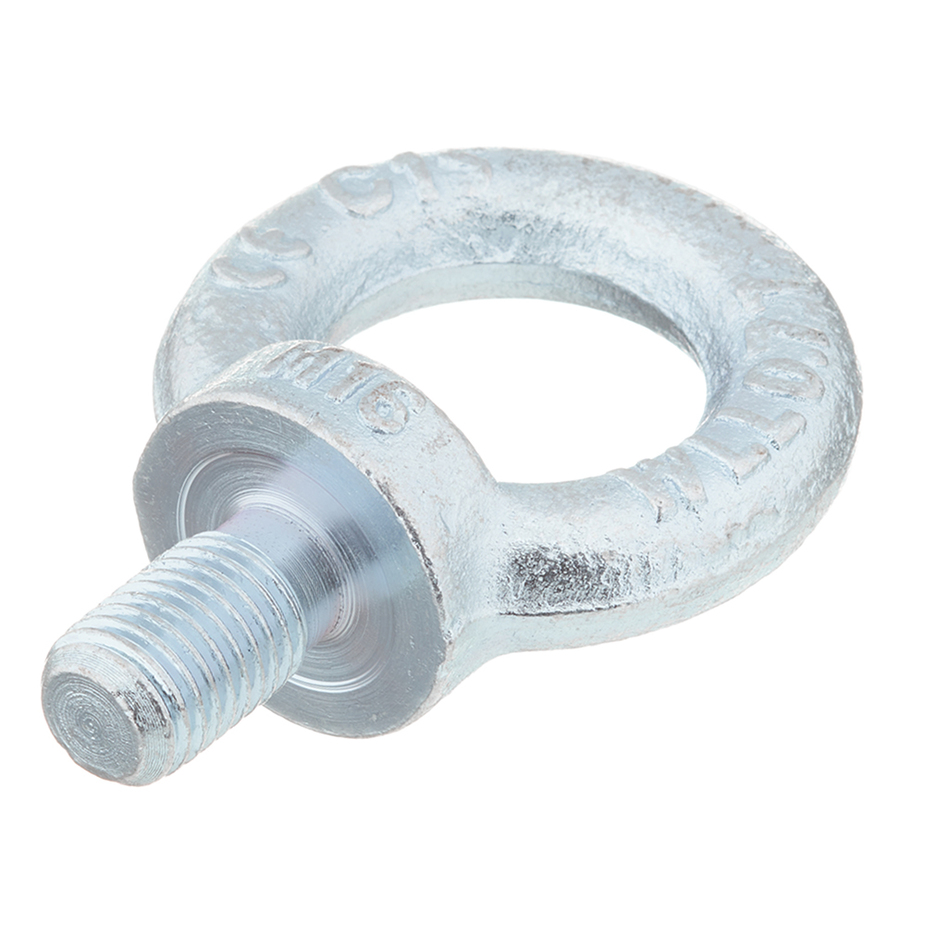

DIN580 lifting eye bolt is a type of German standard lifting ring, selected from Q235 carbon steel and made using die forging process. Widely used to lift various equipment, such as molds, chassis, motors, etc. DIN580 eyebolts refer to the German standard DIN580-2003, which specifies eyebolts with specifications of M8~M10x6 suitable for general loading and unloading of lifting machinery and tools.

As a standard fastener, eye bolt are widely used in mechanical and electrical products, and their main function is to lift loads.
GB825-88 has detailed regulations on the structural form and size, technical requirements, lifting weight, and usage conditions of lifting eye screws. Therefore, apart from standard parts factories, other manufacturers mainly choose and use. The principle of selecting eyebolts is to ensure work safety first, and then consider factors such as connection size to achieve safety, economy, and aesthetics.

To correctly select and use lifting eye screws, it is necessary to deeply analyze their stress situation, carefully study the content specified in the standard, and strive for a thorough understanding.
1. The marking of the eyebolt shall comply with the provisions of GB1237.
Example of marking: A type lifting eye screw with a specification of M20, material of 20 steel, normalized treatment, and no surface treatment. Marking: Screw GB825 M20

Technical requirement
1. The eyebolt should be made of 20 or 25 steel (GB699).
2. The eyebolt must be integrally forged. Forgings should undergo normalizing treatment and remove oxide skin. The grain size of the finished product should not be lower than level 5 (GB6394),

and forgings should not have overburning or crack defects.

eye bolt

Surface treatment
Generally, surface treatment is not required, but according to usage requirements, surface treatments such as galvanizing, passivation, and chromium plating can be carried out, and in accordance with GB5267-85.
