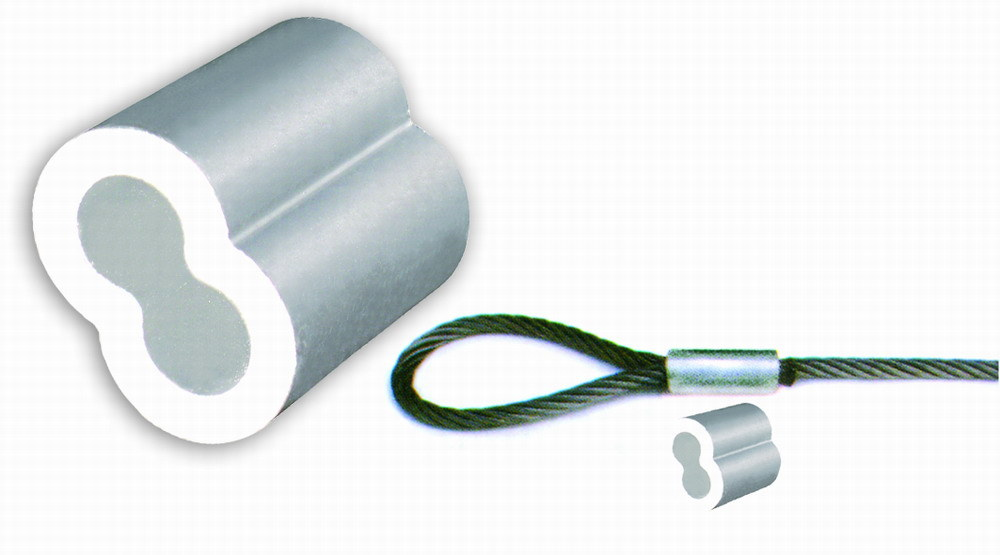

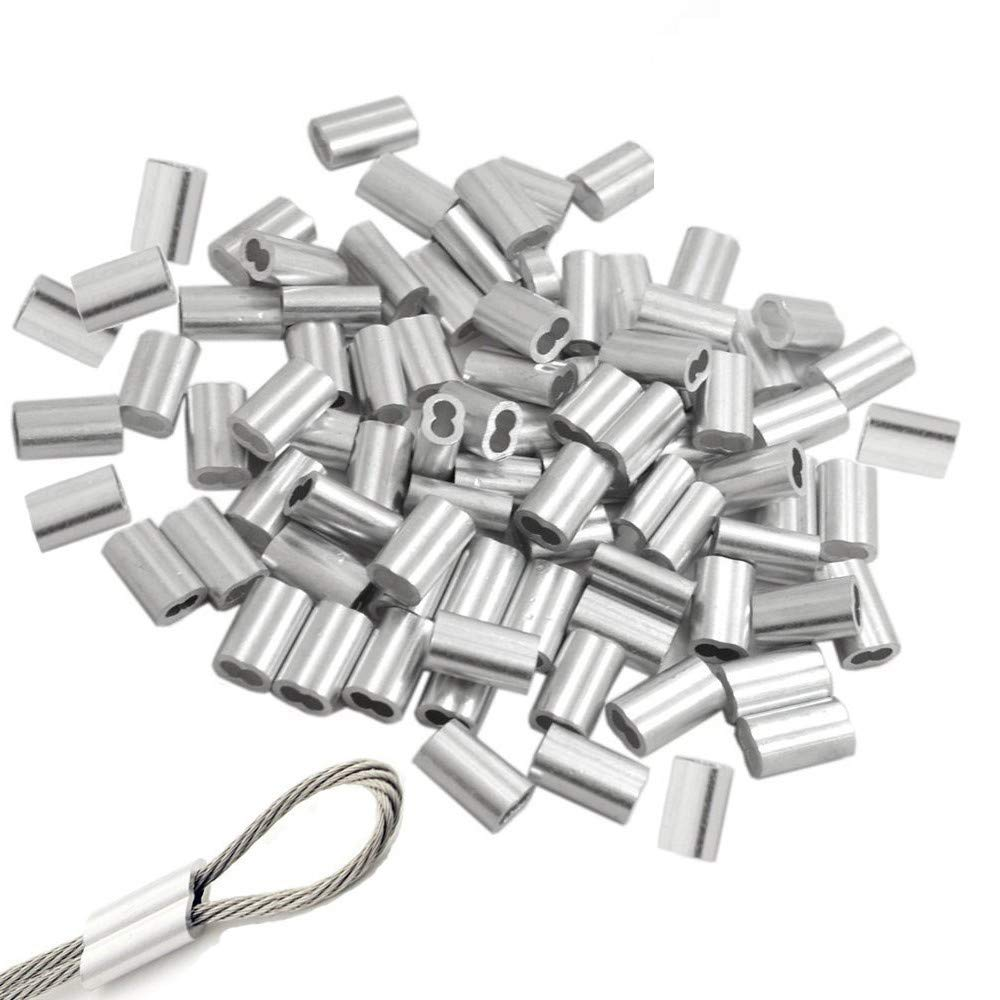

Double Barrel Crimp SleevesAluminum stainless steel sleeve

Short Description:

  1. Product name:Aluminium Sleeves
  2. Material:Aluminium
  3. Finish:Self-color
  4. Type:Aluminium Sleeves
  5. Place of Origin:China
  6. Brand Name:HengOu
  7. Packing:Polybag, Bag, Customizable, Other, Box, Carton Box, Carton
  8. Size:1 - 36
  9. Surface treatment:Self-color
  10. Color:Silver
  11. Application:Wire Rope Fittings
  12. Usage:Wire rope loop

down load to pdf


Share

Detail

Tags

Aluminum sleeve, mainly used for pressing steel wire ropes and lifting equipment, originated in Europe and later introduced to coastal cities and other cities in China through Taiwan. The founder of aluminum sleeve is Talurit Company in Sweden, which first used reverse double action extrusion to form seamless pipes in one go. To this day, there are still only a few companies in the world that can produce.

The standard for aluminum sleeves was first formulated by Europeans and has been revised for many years. The latest standard is EN13411-3, which is the European standard. Germans developed the DIN3093 German standard based on this standard, and the content of the two standards is basically the same. The latest national standard GB/T30589-2014 developed by China based on European standards is consistent in all aspects with European standards, only increasing the length of the aluminum sleeve. In summary, all the standards mentioned above clearly stipulate that the aluminum sleeve must use seamless extrusion technology to form seamless pipes in one extrusion, and the aluminum alloy material must use 5051A special aluminum alloy.All markets except China use seamless aluminum sleeves for production and sales.

The domestic market in China artificially divides aluminum sleeves into two types: seam aluminum sleeves and seamless aluminum sleeves. The seam aluminum sleeves are made of 6063 aluminum alloy, using ordinary extrusion technology, and processed from extruded welded pipes. The production process of seamless aluminum sleeve strictly follows the requirements of European and national standards, with qualified product quality and good safety performance. However, due to the complex technology and high cost, only some large lifting and rigging manufacturers.
Many users use slotted aluminum sleeves but are completely unaware because they do not understand aluminum sleeves and think they are simple aluminum alloy pipes. In fact, aluminum sleeves may seem simple but are actually difficult. Here are some methods to help everyone distinguish the quality of aluminum sleeves, distinguish between seamless seams, and never be deceived. Don't take chances and use flaws, once you fall behind, you will regret for life!
