Understanding Cable Thimbles and Clamps Essential Elements in Cable Systems

In various industries, especially in construction, marine, and rigging applications, cable systems are crucial for ensuring safety and efficiency. Central to these systems are two components that play a significant role cable thimbles and clamps. Understanding their functions, types, and proper usage is essential for anyone working with wire ropes or cables.

What is a Cable Thimble?

A cable thimble is a protective device that fits over the loop of a wire rope or cable. It is typically made from metal, plastic, or other durable materials and serves to maintain the integrity and shape of the loop. The thimble helps to distribute the load evenly, minimizes wear on the cable, and prevents kinking, which can weaken the cable significantly. Thimbles are often used in conjunction with a cable clamp to create a secure loop for lifting, pulling, or securing objects.

The design of the thimble is key to its function. A well-crafted thimble has a smooth surface that reduces friction and wear on the cable. This is particularly important in high-load applications where the cable is subject to frequent movement or dynamic forces. By using a thimble, users can extend the life of the cable and enhance the overall safety of the setup.

What is a Cable Clamp?

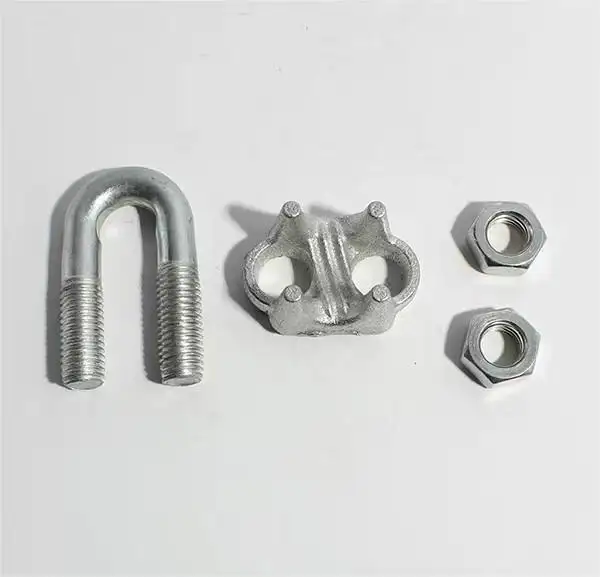

A cable clamp, also known as a wire rope clamp or U-bolt clamp, is a device used to secure the ends of a wire rope together, creating a fixed loop. Typically made from steel or other robust materials, cable clamps consist of a U-shaped bolt, a saddle, and nuts. When attached properly, the clamp ensures that the cable remains fixed in position, which is crucial for safety.

The proper installation of a cable clamp is vital. It is recommended to use at least two clamps when making a loop, positioning one near the thimble and the other further away to prevent slipping. The general rule of thumb is to ensure that the clamp is tightened to the appropriate torque to avoid the risk of loosening under load.

Proper Use and Safety Considerations

When working with cable thimbles and clamps, certain best practices should be followed to ensure safety and effectiveness.

1. Select the Right Size Always choose thimbles and clamps that are suitable for the diameter of your wire rope. Using the wrong size can lead to failure.

2. Inspect Components Regularly Prior to use, inspect thimbles and clamps for signs of wear, corrosion, or damage. Replace any compromised components immediately.

3. Follow Manufacturer Guidelines Different manufacturers may have specific recommendations for load limits and installation procedures. Always adhere to these guidelines to maintain a safe working environment.

4. Ensure Proper Tightening When using clamps, make sure that they are tightened according to specifications. Over-tightening can damage the cable, while under-tightening can lead to slippage.

5. Training and Awareness Those involved in lifting or rigging operations should be trained on the proper use of cable systems, including thimbles and clamps, to ensure safety and reduce the risk of accidents.

Conclusion

Cable thimbles and clamps are fundamental components in the realm of cable systems, essential for the integrity and safety of installations. Their proper use not only prolongs the life of cables but also safeguards against potential hazards. As industries continue to rely on high-performance cable systems, understanding and implementing best practices involving thimbles and clamps will remain a priority for professionals in the field. By prioritizing safety and adhering to guidelines, we can ensure that cable installations are both effective and secure.
